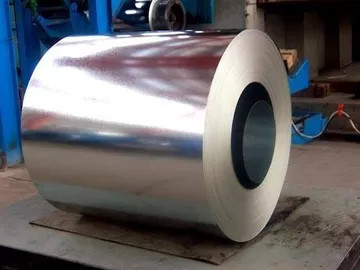

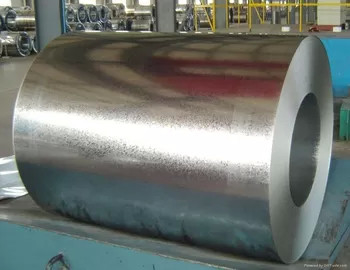

Galvanized Sheet Coil GI Coil With 508mm Diameter galvanized steel coil sheet
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Galvanized Steel Coil | Grade | DX51D, SGCC, SGHC,SPCC,SGHC, DX51D,SGCC. |
|---|---|---|---|
| Certification | ISO,SGS,BV,etc. | Brand | HY Metal |
| Processing Service | Decoiling, Cutting | Standard | AiSi, ASTM, Bs, DIN, GB, JIS |
| Highlight | 508mm gi coil,508mm galvanized sheet coil,sgcc gi coil |
||
Product Description
Galvanized Steel Coil
Filming Galvanized Steel Coil With 508mm Diameter For Outside Walls
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | Haiyue |
| Certification | CE & SGS |
| Minimum Order Quantity | 25 MT |
| Price | US $ 600-800 / MT |
| Packaging Details | Standard seaworthy packing for international delivery |
| Delivery Time | 10-30 days |
| Payment Terms | T/T or L/C |
| Supply Ability | 10000 Ton/Tons per Month |
PRODUCT DETAILS
| Name | Galvanized Steel Coil | Standard | ASTM BS DIN JIS EN |
|---|---|---|---|
| Technique | Cold Rolled | Certificate | CE & SGS |
| Inner Diameter | 508-610mm | Width | 600-1500mm |
| High Light |
galvanized steel sheets,aluminum galvanized steel |
||
PRODUCT DESCRIPTION
Filming Galvanized Steel Coil With 508mm Diameter For Outside Walls
Quick Details
- Standard:ASTM,BS,DIN,JIS, EN
- Grade:SGCC
- Thickness:0.15-4.0mm
- Place of Origin:China (Mainland)
- Brand Name: Sincere
- Model Number:SGCC
- Type:Steel Coil
- Technique:Cold Rolled
- Surface Treatment:Galvanized
- Application:Construction & Base Metal
- Width:600-1500mm
- Length:Steel Coil
- Description:Galvanized Steel Coil
- Base Metal:SPCC
- Available Dipped Layers:50-275g/m2
- Inner Diameter:508-610mm
- Available Surface Treatment:Passivating & Oiling & AFP & Filming
- HS Code:72104900
- Approved Certificate:CE & SGS
Specifications
Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property
The Protection Principle
1. Anodic reaction: Zn-2e=Zn2+
(The alloy coating loses electron, sacrificing itself in dissolution.)
2. Cathodic reaction: Fe2++2e=Fe
(Fe gains electron reaction, being protected)
About us
Our main products are steel products, such as Galvanized Steel Coil , Hot Dip Galvanized Steel Coil,Hot Dip Galvanized Steel Strip,Hot Dipped Galvanized Steel,Galvalume Steel Coils,Aluzinc Steel Coils,Cold Rolled Steel Coils,Cold Rolled Steel Sheets,ERW Steel Pipes,Stainless Steel Seamless Pipes,Prepainted Steel Coils,Welded Steel Pipes.We would be glad to welcome your enquries and will give you very fast feedback.
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Mechanical Properties
| Grades | Mechanical Property | Coating Adhesion | |||||
| Yield StrengthMPa | Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) | ||||
| La=80mm b=20(mm) | |||||||
| At Following nominal Thickness ( mm) | |||||||
| ≤0.7 | >0.7 | ≤140/140 | >140/140-175/175 | >175/175 | |||
| SGCC SGHC | 140-350 | 270-500 | 20 | 22 | 0a | 1a | 2a |
| SGCD1 | 140-300 | 270-420 | 24 | 26 | 0a | 1a | 2a |
| SGCD2 SGCD3 | 140-260 | 270-380 | 28 | 30 | 0a | 1a | 2a |
Application
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
Superiority
1. Good Resistance to Corrosion
2. Qualified Processing Machinability
3. High Thermal Resistance
4. Excellent Reflectivity
5. Inexpensive and effective enough
6. Can be recycled and reused multiple times
