ASTM A653 Hot Dipped Galvanised Coil With Good Mechanical Property
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products Name | Galvanized Steel Coil | Grade | DX51D, SGCC, SGHC,SPCC,SGHC, DX51D,SGCC. |
|---|---|---|---|
| Certification | ISO,SGS,BV,etc. | Brand | HY Metal |
| Processing Service | Decoiling, Cutting | Standard | AiSi, ASTM, Bs, DIN, GB, JIS |
| Highlight | astm a653 hot dipped galvanised coil,astm a653 hot dipped galvanized coil,good mechanical property hot dipped galvanised coil |
||
Product Description

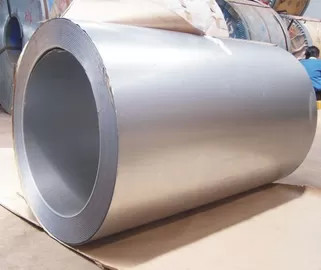

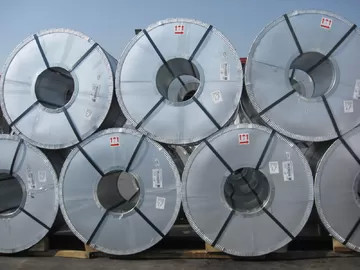

ASTM A653 Hot Dipped Galvanized Coil With Good Mechanical Property
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | Haiyue |
| Certification | CE & SGS |
| Minimum Order Quantity | 25 MT |
| Price | US $ 600-800 / MT |
| Packaging Details | Standard seaworthy packing for international delivery |
| Delivery Time | 10-30 days |
| Payment Terms | T/T or L/C |
| Supply Ability | 10000 Ton/Tons per Month |
PRODUCT DETAILS
| Grade | CS Type C | Thickness | 0.15-4.0mm |
|---|---|---|---|
| Technique | Cold Rolled | Name | Cold Rolled Steel Coil |
| High Light |
galvanized steel sheets,galvanized steel roof panels |
||
PRODUCT DESCRIPTION
ASTM A653 Hot Dipped Galvanized Coil With Good Mechanical
Property
Quick Details
Specification
1. Thickness: 0.15-4.0mm
2. Width: 600-1500mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-18MT
5. Coating Type: Pure Zinc
6. Available Dipped Layer: 50-275g/m2
7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming
Specifications
Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property
Good Mechanical Property ASTM A653 Standard Hot Dipped Galvanized Coil
Brief Introduction
Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.
The Protection Principle
1. Anodic reaction: Zn-2e=Zn2+
(The alloy coating loses electron, sacrificing itself in dissolution.)
2. Cathodic reaction: Fe2++2e=Fe
(Fe gains electron reaction, being protected)
Mechanical Properties
| Grades | Mechanical Property | Coating Adhesion | |||||
| Yield StrengthMPa | Tensile StrengthMPa |
Elongation% ≥ |
Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness) | ||||
| La=80mm b=20(mm) | |||||||
| At Following nominal Thickness ( mm) | |||||||
| ≤0.7 | >0.7 | ≤140/140 | >140/140-175/175 | >175/175 | |||
| CS Type C | 140-350 | 270-500 | 20 | 22 | 0a | 1a | 2a |
| CS Type A, Type B | 140-300 | 270-420 | 24 | 26 | 0a | 1a | 2a |
| FS Type A, Type B | 140-260 | 270-380 | 28 | 30 | 0a | 1a | 2a |
Application
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
Superiority
1. Good Resistance to Corrosion
2. Qualified Processing Machinability
3. High Thermal Resistance
4. Excellent Reflectivity
5. Inexpensive and effective enough
6. Can be recycled and reused multiple times
