DX51D+Z Hot Dip Galvanized Sheets / Rolls 0.15-4.0mm Passivating & Oiling & AFP & Filming

Place of Origin Jiangsu, CN
Brand Name Haiyue / HY METAL
Certification ISO9001
Minimum Order Quantity 5 Tons
Price negotiable
Packaging Details Customized packaging
Delivery Time 30 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000 Ton/Tons per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Name Galvanized Steel Coil Grade DX51D, SGCC, SGHC,SPCC,SGHC, DX51D,SGCC.
Certification ISO,SGS,BV,etc. Brand HY Metal
Processing Service Decoiling, Cutting Standard AiSi, ASTM, Bs, DIN, GB, JIS
Highlight

DX51D+Z Hot Dip Galvanized Sheets

,

Hot Dip Galvanized Rolls 0.15-4.0mm

,

Passivating Hot Dip Galvanized Rolls

Leave a Message
Product Description

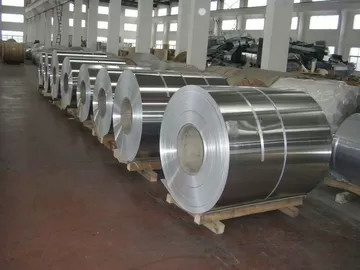

Hot Dip Galvanized Steel Coil

High Dimensional Accuracy Hot Dip Galvanized Steel Coil / Sheets , DX52D+Z

Place of Origin China (Mainland)
Brand Name Haiyue
Certification CE & SGS
Minimum Order Quantity 25 MT
Price US $ 600-800 / MT
Packaging Details Standard seaworthy packing for international delivery
Delivery Time 10-30 days
Payment Terms T/T or L/C
Supply Ability 10000 Ton/Tons per Month



PRODUCT DETAILS
Name Hot Dip Galvanized Steel Coil Standard ASTM,BS,DIN,JIS, EN
Grade DX51D+Z Thickness 0.15-4.0mm
Place Of Origin China (Mainland) Brand Name haiyue
High Light

galvanized steel roof panels

,

stainless steel galvanized steel



PRODUCT DESCRIPTION

High Dimensional Accuracy Hot Dip Galvanized Steel Coil / Sheets , DX52D+Z

Quick Details



  • Model Number:DX51D+Z
  • Type:Steel Coil
  • Technique:Cold Rolled
  • Surface Treatment:Galvanized
  • Application:Construction & Base Metal
  • Width:600-1500mm
  • Length:Steel Coil
  • Description:Galvanized Steel Coil
  • Base Metal:DC01
  • Available Dipped Layers:50-275g/m2
  • Inner Diameter:508-610mm
  • Available Surface Treatment:Passivating & Oiling & AFP & Filming
  • HS Code:72104900
  • Approved Certificate:CE & SGS

Specifications



Galvanized Steel Coil
1.ISO9001 approved
2.High adhesivenees and preciseness
3.Excellent mechanical property



High Dimensional Accuracy Galvanized Steel Coils and Sheets



Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)



Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming



Mechanical Properties



Grades Mechanical Property Coating Adhesion
Yield StrengthMPa Tensile StrengthMPa

Elongation%

Bending Center Diameter at Following Coating Weight (g/m²) (a=Plate Thickness)
La=80mm b=20(mm)
At Following nominal Thickness ( mm)
≤0.7 >0.7 ≤140/140 >140/140-175/175 >175/175
DX51D+Z 140-350 270-500 20 22 0a 1a 2a
DX52D+Z 140-300 270-420 24 26 0a 1a 2a
DX53D+Z 140-260 270-380 28 30 0a 1a 2a





Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine



Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
