ISO9001 Zero Spangle ASTM A653 Hot Dip Galvanized Steel Coil Roofing Steel Coil

Good Mechanical Property Hot Dip Galvanized Steel Coil , ASTM A653 Standard

ASTM A653 Steel Galvanized Sheet is available in six metallurgical designations, providing different degrees of formability and strength to the base sheet:

● Commercial steel(CS),

● Forming steel(FS),

● Deep drawing steel(DDS),

● Extra deep drawing steel(EDDS),

● Structural steel(SS),

● High strength low alloy steel(HSLA).

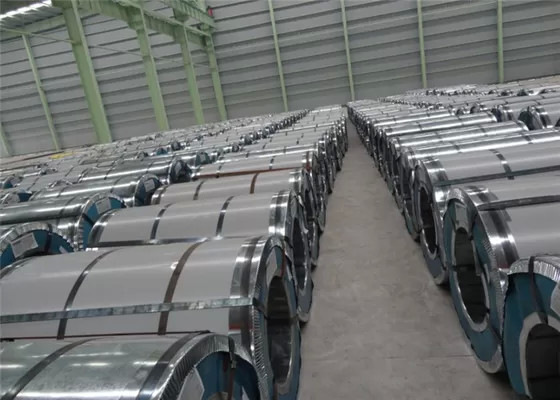

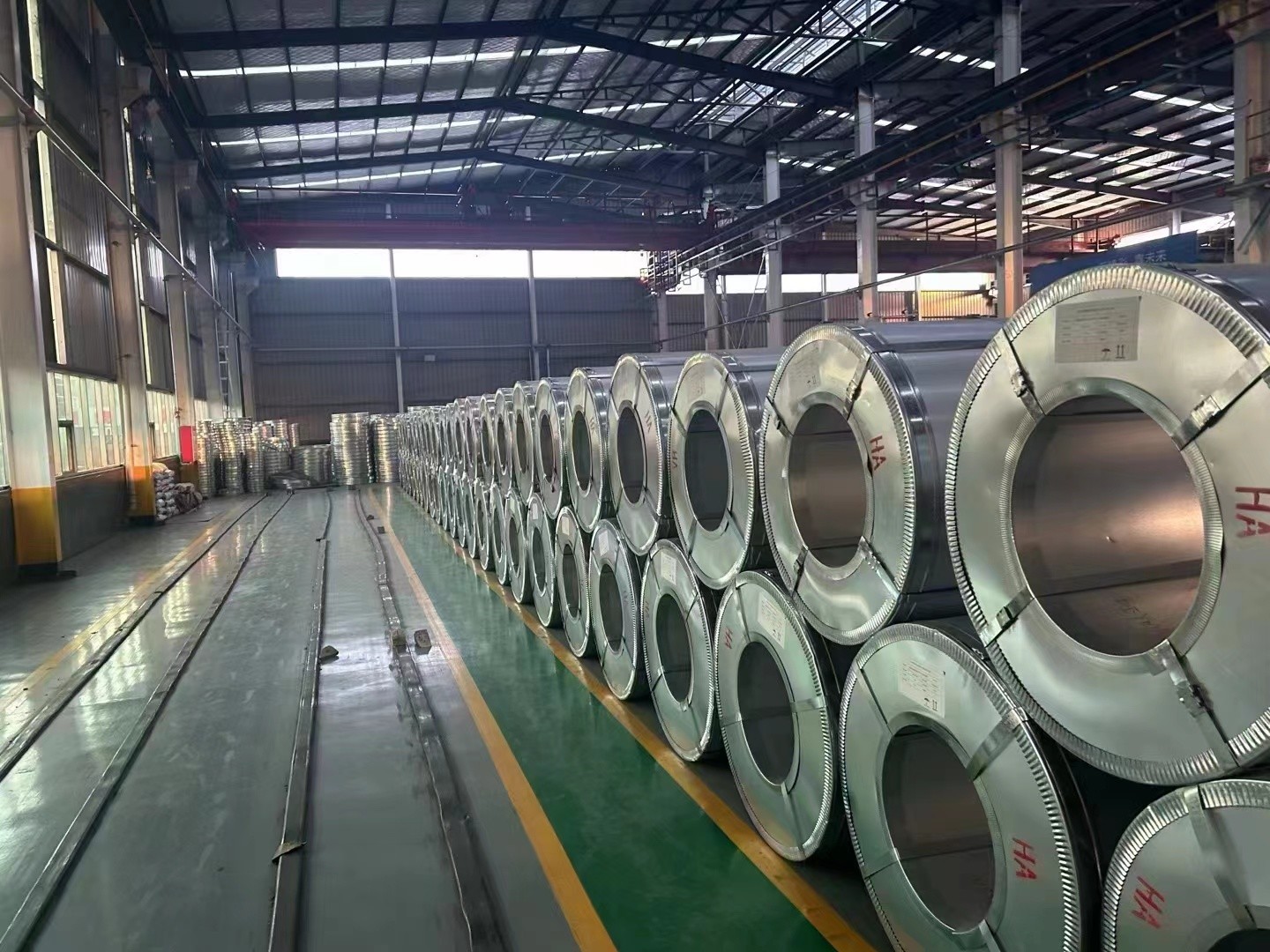

Galvanized Steel Coil
1. ISO9001 approved
2. High adhesivenees and preciseness
3. Excellent mechanical property

Good Mechanical Property ASTM A653 Standard Hot Dipped Galvanized Coil

Brief Introduction

Galvanized Steel Coil gets coated in layers of zinc because rust won't attack this protective metal. The most external layer is all zinc, but successive layers are a mixture of zinc and iron, with an interior of pure steel. These multiple layers are responsible for the amazing property of the metal to withstand corrosion-inducing circumstances. Zinc also protects the steel by acting as a "sacrificial layer." If rust does take hold on the surface of Galvanized Steel Coil, the zinc will get corroded first. This allows the zinc that is spread over the breach or scratch to prevent rust from reaching the steel. For countless outdoor, marine, or industrial applications, Galvanized Steel Coil is an essential fabrication component.

The Protection Principle

1. Anodic reaction: Zn-2e=Zn2+

(The alloy coating loses electron, sacrificing itself in dissolution.)

2. Cathodic reaction: Fe2++2e=Fe

(Fe gains electron reaction, being protected)

Specification

1. Thickness: 0.15-4.0mm

2. Width: 600-1500mm

3. Inner Diameter: 508mm

4. Weight of Steel Coil: 3-18MT

5. Coating Type: Pure Zinc

6. Available Dipped Layer: 50-275g/m2

7. Surface Finish Structure: Zero Spangle & Finishing Small Spangle & Regular Spangle

8. Available Surface Treatment: Passivating & Oiling & AFP & Filming

Application

1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds

2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts

3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway

4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine

Superiority

1. Good Resistance to Corrosion

2. Qualified Processing Machinability

3. High Thermal Resistance

4. Excellent Reflectivity

5. Inexpensive and effective enough

6. Can be recycled and reused multiple times
